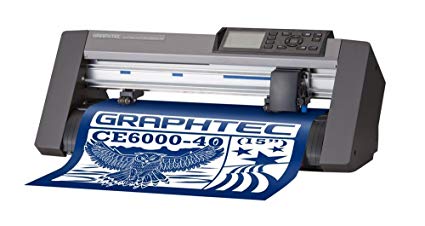

เครื่อตัดสติ๊กเกอร์ GRAPHTEC CE6000-40

ราคาขาย 39000 ฿

คำอธิบาย

Specifications

Item	CE6000-40	CE6000-60	CE6000-120	CE6000-120-AMO
CPU	32-bit CPU
Configuration	Grit rolling type, digital servo drive
Max. cutting area (Guaranteed cutting area)	375 mm x 50 m 1 (356 mm x 2 m 1)	603 mm x 50 m 1 (584 mm x 5 m 1)	1213 mm x 50 m 1 (1194 mm x 5 m 1)
Mark scanning margin	Type 1 mark: Front 15 mm, Rear 35 mm, Left/Right 15 mm Type 2 mark: Front 17 mm, Rear 37 mm, Left/Right 15 mm (Length of media up to 2 m)
Number of push roller	2 rollers	2 rollers	4 rollers	4 rollers
Max. cutting speed	600 mm/s (All directions)	900 mm/s (at 45º direction)	1000 mm/s (at 45º direction)
Max. acceleration	21.2 m/s2 (at 45º direction)		13.9 m/s2 (at 45º direction)
Max. cutting force (Instantaneous max. force)	2.94 N (300 gf) in 31 steps (3.2 N (330 gf))	4.41 N (450 gf) in 38 steps (4.9 N (500 gf))	4.41 N (450 gf) in 38 steps (4.9 N (500 gf))
Minimum character size	Approx. 5 mm alphanumeric (varies depending on character font and type of media)
Repeatability	Max. 0.1 mm in plot up to 2 m *1
Mountable number of tools	1 tool
Blade type	Supersteel
Pen type	Oil-based ballpoint, Water-based fiber-tip pen
Media type	Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 0.25 mm thickness Polyester film, up to 0.25mm thickness (unguaranteed accuracy)
Perforation cutting	Yes (performed by force control)
Interface	RS-232C / USB2.0 (High Speed)
Buffer memory	2 MB
Command sets	GP-GL / HP-GL™ emulation (Set by the menu or the command, and selects from GP-GL, HP-GL™, or Auto detect)
Display	Graphic type LCD with backlight (240dots x 128dots)
